Architecture

This document provides a comprehensive technical architecture overview of ClickLens for developers and contributors.

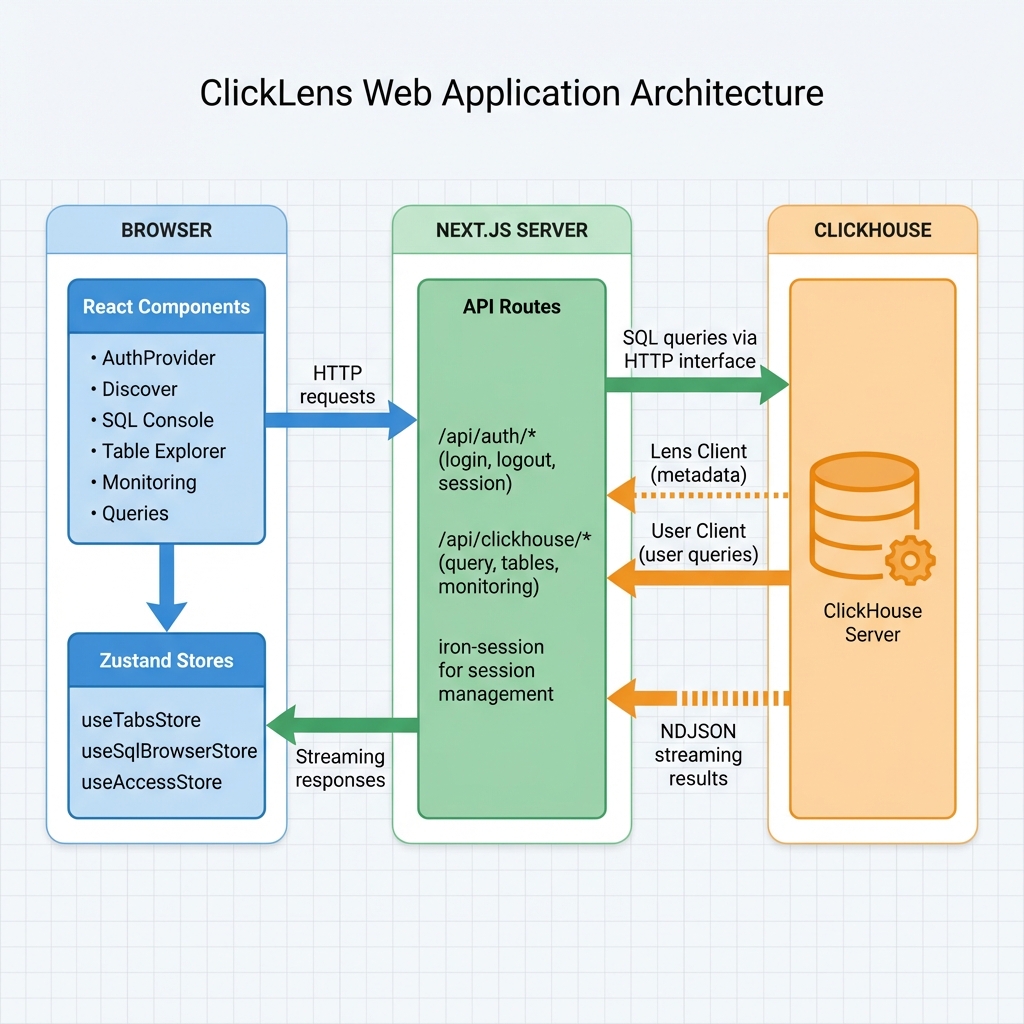

System Architecture Overview

ClickLens follows a layered architecture pattern with clear separation of concerns, enabling independent development and testing of each layer. The system is designed as a stateless web application that delegates all heavy lifting to ClickHouse while maintaining minimal server-side state.

Architecture Layers

1. Frontend Layer (src/app/(app)/ and src/components/): React Server and Client Components organized by feature module. State management via Zustand with selective localStorage persistence.

2. API Layer (src/app/api/): 41+ Next.js route handlers grouped by function (auth, clickhouse operations, access management). Handles authentication, permission checks, and ClickHouse query execution.

3. Service Layer (src/lib/): Core business logic including ClickHouse client management, RBAC derivation, monitoring queries, and SQL parsing utilities.

4. External Layer: ClickHouse cluster accessed exclusively via HTTP interface. System tables provide metadata, monitoring data, and security information.

Key Architectural Decisions

• Dual Client Model: Separates privileged operations (via LENS_USER) from user-context queries (via session credentials)
• Permission Derivation: UI capabilities are computed from ClickHouse grants at login time, not stored separately
• NDJSON Streaming: Large query results stream incrementally to avoid memory exhaustion
• Server Components First: Next.js App Router with React Server Components for improved performance

Technology Stack

ClickLens leverages modern web technologies optimized for performance and developer productivity.

Application Structure

The application follows Next.js App Router conventions with route groups for logical organization.

Directory Organization

src/
├── app/                    # Next.js App Router
│   ├── (app)/              # Authenticated route group (9 features)
│   │   ├── discover/       # Kibana-like data exploration
│   │   ├── sql/            # SQL Console with multi-tab support
│   │   ├── tables/         # Table Explorer with schema view
│   │   ├── monitoring/     # 8 monitoring sub-pages
│   │   ├── queries/        # Query analytics (4 views)
│   │   ├── logging/        # System logging (3 views)
│   │   ├── access/         # User and role management
│   │   ├── settings/       # Settings viewer
│   │   └── profile/        # User profile management
│   ├── api/                # API route handlers
│   │   ├── auth/           # Authentication (5 endpoints)
│   │   ├── clickhouse/     # ClickHouse operations (35+ endpoints)
│   │   └── saved-queries/  # Saved queries CRUD
│   └── login/              # Public login page
├── components/             # React components (80 files)
│   ├── auth/               # AuthProvider, useAuth hook
│   ├── discover/           # Discover feature components
│   ├── layout/             # Sidebar, Header, Shell
│   ├── logging/            # Log viewers and filters
│   ├── monitoring/         # Monitoring tabs and widgets
│   ├── queries/            # Query analytics components
│   ├── sql/                # SQL Console components
│   ├── tables/             # Table explorer components
│   └── ui/                 # shadcn/ui primitives (30 components)
└── lib/                    # Core business logic (31 files)
    ├── auth/               # Session management
    ├── clickhouse/         # ClickHouse client & config
    ├── hooks/              # Custom React hooks (6)
    ├── rbac/               # Feature roles and permissions
    ├── store/              # Zustand stores (3)
    ├── types/              # TypeScript definitions
    └── sql/                # SQL parsing utilities

Feature Module Summary

Core Architectural Patterns

Dual Client Model

ClickLens employs a sophisticated dual-client architecture that separates metadata operations from user queries, ensuring both security and performance.

Lens Client (Service Account)

• Credentials: From environment variables (LENS_USER, LENS_PASSWORD)
• Purpose: Read-only metadata and monitoring operations that don't require user context
• Used By: Permission derivation, schema introspection, monitoring dashboards, cluster topology
• Required Grants: SELECT ON system.*, SHOW DATABASES, SHOW TABLES, ACCESS MANAGEMENT (for reading grants)

User Client (Session Credentials)

• Credentials: From user session (encrypted in cookie)
• Purpose: Execute user-initiated queries with their actual ClickHouse permissions
• Used By: SQL Console, Discover, Table Explorer (for data preview)
• Permissions: Exactly what the user has in ClickHouse (SELECT, INSERT, CREATE, etc.)
• Audit Trail: Queries appear in system.query_log with the user's username

When Each Client is Used

State Management Architecture

ClickLens uses Zustand for client-side state management, organized into three distinct stores with different persistence strategies.

useTabsStore (Persisted)

Purpose: Manage SQL Console tabs and query history

Persistence: localStorage (key: clicklens-tabs-storage)

State:

• tabs: Array of query and table tabs
• activeTabId: Currently active tab
• history: Last 100 query history entries

Persistence Strategy:

• Tabs are saved without result data (too large for localStorage)
• History entries include: SQL, duration, rows, bytes, memory, user, error
• Maximum 100 history entries retained (oldest pruned)

useSqlBrowserStore (Transient)

Purpose: Cache database/table metadata for SQL Console and Discover

Persistence: None (in-memory only)

State:

• databases: List of available databases
• selectedDatabase: Currently selected database
• tables: Table information
• tablesCache: Cached table lists per database
• columnsCache: Cached column information with TTL

Caching Strategy:

• Tables are preloaded for all databases on mount
• Columns have a 5-minute TTL cache
• Cache keys use database.table format

useAccessStore (Transient)

Purpose: Manage Access Control UI state (user/role editing)

Persistence: None (transient state)

State:

• Editing state for users and roles
• Form data for create/edit operations

Data Flow Architecture

Query Execution Pipeline (NDJSON Streaming)

ClickLens implements a streaming query execution model that efficiently handles large result sets without blocking the UI or consuming excessive memory.

Stream Events (NDJSON Format):

Client-Side Processing:

1. Parse NDJSON lines as they arrive
2. Throttle UI updates to every 200ms (performance optimization)
3. Accumulate rows in component state
4. Display progress while streaming

Query Cancellation Flow

Each query is assigned a UUID (query_id) which enables cancellation via ClickHouse's KILL QUERY command.

Authentication & Authorization Architecture

ClickLens implements a sophisticated permission derivation model that leverages ClickHouse's native RBAC system, eliminating the need for separate permission storage or synchronization.

Session Management

Session Library: iron-session

Configuration:

• Cookie Name: clicklens-session
• Encryption: AES-256-GCM via iron-session
• TTL: 24 hours
• Storage: Encrypted cookie (credentials never exposed to browser)
• Secret Key: SESSION_SECRET environment variable (minimum 32 characters)

Session Data Structure:

interface SessionData {
  isLoggedIn: boolean;
  sessionId?: string;
  user?: {
    username: string;
    password: string;  // Encrypted in cookie
    host?: string;
    database?: string;
  };
}

Permission Derivation Model

Permissions are not stored in ClickLens—they are dynamically derived from ClickHouse grants at login time. This ensures permissions always reflect the current ClickHouse state without synchronization complexity.

Derivation Process:

1. User logs in with ClickHouse credentials
2. ClickLens queries system.grants for user privileges (via Lens Client)
3. If no rows (XML-configured users), fall back to SHOW GRANTS (via User Client)
4. Execute probe queries to verify access (e.g., SELECT 1 FROM system.processes LIMIT 1)
5. Map native ClickHouse grants to 13 UI permission flags
6. Permissions are cached in client-side AuthContext
7. UI components use useAuth() hook to check permissions

Grant-to-Permission Mapping:

Feature Roles: ClickLens defines 6 predefined ClickHouse roles prefixed with clicklens_* that bundle common permission sets.

Component Architecture

ClickLens follows a hierarchical component structure with clear separation between UI primitives and feature-specific components.

Component Hierarchy

App (Root)
├── AuthProvider (wraps entire app)
│   └── Provides authentication context
├── Layout (src/app/layout.tsx)
│   └── Global layout with providers
└── (app) Route Group
    ├── Shell Layout (src/app/(app)/layout.tsx)
    │   ├── Sidebar (navigation)
    │   ├── Header (top bar)
    │   └── Connection Status
    └── Feature Pages
        ├── Dashboard
        ├── Discover
        ├── SQL Console
        ├── Table Explorer
        ├── Monitoring (8 tabs)
        ├── Queries (4 views)
        ├── Logging (3 views)
        ├── Access (2 views)
        ├── Settings (2 views)
        └── Profile

Custom Hooks Architecture

The application uses six custom hooks to encapsulate complex logic and provide clean interfaces to components.

API Architecture

ClickLens exposes 41+ API endpoints organized by functional area. All endpoints follow REST conventions and return JSON responses (except streaming query endpoint which returns NDJSON).

API Endpoint Groups

Authentication (/api/auth/):

• /api/auth/login - Authenticate user, create session
• /api/auth/logout - Destroy session
• /api/auth/session - Get current session data
• /api/auth/permissions - Derive UI permissions from grants
• /api/auth/password - Change user password

Query Execution (/api/clickhouse/):

• /api/clickhouse/query - Execute SQL with NDJSON streaming
• /api/clickhouse/kill - Kill running query by query_id
• /api/clickhouse/ping - Health check

Schema & Metadata (/api/clickhouse/):

• /api/clickhouse/databases - List databases
• /api/clickhouse/tables - List tables
• /api/clickhouse/schema/columns - Get column metadata for autocomplete
• /api/clickhouse/schema/table-columns - Get table columns with types

Table Explorer (/api/clickhouse/tables/explorer/):

• /api/clickhouse/tables/explorer - Table list with engine info
• /api/clickhouse/tables/explorer/columns - Column definitions
• /api/clickhouse/tables/explorer/parts - Data parts
• /api/clickhouse/tables/explorer/merges - Active merges
• /api/clickhouse/tables/explorer/mutations - Pending mutations
• /api/clickhouse/tables/explorer/replicas - Replica status
• /api/clickhouse/tables/explorer/dependencies - Table dependency graph
• /api/clickhouse/tables/explorer/ddl - CREATE TABLE statement

Monitoring (/api/clickhouse/monitoring/):

• /api/clickhouse/monitoring/overview - Dashboard metrics
• /api/clickhouse/monitoring/dashboard - Time-series charts
• /api/clickhouse/monitoring/metrics - Current metrics
• /api/clickhouse/monitoring/cluster - Cluster topology
• /api/clickhouse/monitoring/health - Health checks
• /api/clickhouse/monitoring/disks - Disk usage
• /api/clickhouse/monitoring/keeper - Keeper status
• /api/clickhouse/monitoring/operations - Merges/mutations

Query Analytics (/api/clickhouse/queries/):

• /api/clickhouse/queries/running - Active queries (system.processes)
• /api/clickhouse/queries/history - Query log (system.query_log)
• /api/clickhouse/queries/analytics - Top resource-consuming queries
• /api/clickhouse/queries/cache - Query cache statistics

Access Management (/api/clickhouse/access/):

• /api/clickhouse/access/users - List/create users
• /api/clickhouse/access/users/[id] - Update/delete user
• /api/clickhouse/access/roles - List/create roles
• /api/clickhouse/access/roles/[id] - Update/delete role

Discover Feature (/api/clickhouse/):

• /api/clickhouse/discover - Data or histogram query

Logging (/api/clickhouse/logging/):

• /api/clickhouse/logging/server - Server logs (system.text_log)
• /api/clickhouse/logging/session - Session logs (system.session_log)
• /api/clickhouse/logging/crash - Crash logs (system.crash_log)

Settings (/api/clickhouse/settings/):

• /api/clickhouse/settings/server - Server settings (system.server_settings)
• /api/clickhouse/settings/session - Session settings (system.settings)

API Patterns and Conventions

Error Handling: All endpoints return { success: boolean, error?: string, data?: any } format. HTTP status codes: 200 (success), 401 (unauthorized), 403 (forbidden), 500 (server error).

Authentication: All /api/clickhouse/* endpoints check session via getSessionClickHouseConfig(). Returns 401 if not logged in.

Permission Checks: Endpoints that require specific permissions check them via the User Client (e.g., attempting KILL QUERY will fail if user lacks the grant).

Client Selection:

• User-initiated queries: User Client
• Metadata/monitoring: Lens Client
• Access management: User Client (requires ACCESS MANAGEMENT)

Security Architecture

ClickLens implements defense-in-depth security through multiple layers.

Application Security

1. Session Encryption: All session data encrypted with iron-session (AES-256-GCM)
2. Permission Derivation: Direct mapping from ClickHouse grants, no permission storage
3. Input Validation: Zod schemas for all API inputs
4. Rate Limiting: Built-in rate limiting for authentication endpoints
5. Security Headers: Next.js configured with strict security policies

Network Security

1. HTTPS Support: Optional SSL/TLS for ClickHouse connections
2. Cookie Security: Secure, HttpOnly cookies in production
3. CSRF Protection: SameSite cookie policies and explicit Double-Submit Cookie token (x-csrf-token header) for state-mutating API routes
4. CORS Control: Configured API access policies

Error Handling Architecture

ClickLens implements centralized error handling through @/lib/errors to provide consistent, user-friendly error messages while maintaining security.

Error Categorization

All ClickHouse errors are categorized into specific types for appropriate handling and user feedback.

Error Response Format

All API errors follow a consistent structure:

{
  success: false;
  error: {
    code: number;           // HTTP status or error code
    type: string;           // "SYNTAX", "SCHEMA", "PERMISSION", etc.
    message: string;        // Technical details (sanitized in production)
    userMessage: string;    // User-friendly explanation
    hint?: string;          // Optional actionable suggestion
  };
}

Security Considerations

• Production Sanitization: File paths, IP addresses, credentials, and stack traces are removed from error responses
• Server-Side Logging: Full error details logged server-side for debugging
• User-Friendly Messages: Technical errors translated to actionable guidance
• Hint System: Contextual suggestions help users resolve issues independently

Usage Pattern

import { formatQueryError } from "@/lib/errors";

try {
  const result = await clickHouseClient.query({ query: sql });
  return result;
} catch (error) {
  const formatted = formatQueryError(error, undefined, true);
  return NextResponse.json(
    { success: false, error: formatted },
    { status: 500 },
  );
}

Performance Optimizations

ClickLens incorporates several performance optimizations to ensure responsiveness even with large datasets.

1. NDJSON Streaming: Incremental result rendering
2. Column Caching: 5-minute TTL for schema information
3. Throttled Updates: 200ms throttle during streaming
4. Virtualization: Virtual scrolling for large tables
5. Code Splitting: Automatic route-based code splitting
6. Standalone Build: Optimized serverless deployment
7. Query Timeout Enforcement: Prevents runaway queries (default 60s, max 300s)
8. Metadata Caching: Table schemas and column information cached to reduce database load

Virtualized Components

ClickLens implements virtualized rendering for large datasets to maintain smooth performance even with millions of rows.

Technical Implementation:

• Uses TanStack Table with virtualization plugin
• Renders only visible rows (typically 20-50) regardless of total dataset size
• Maintains scroll position and selection state efficiently
• Supports dynamic row heights for expandable content
• Implements column resizing with persisted preferences

Deployment Architecture

ClickLens is designed for containerized deployment with a multi-stage Docker build optimized for production environments.

Docker Build Stages

Build Optimizations:

• Multi-stage build for minimal image size
• Standalone output for optimal startup
• Runtime environment variables
• Session secret provided at runtime (not build time)

Environment Configuration

The application requires minimal configuration through environment variables:

Required:

• CLICKHOUSE_HOST - ClickHouse server address
• LENS_USER - Service account username
• LENS_PASSWORD - Service account password
• SESSION_SECRET - Session encryption key (min 32 chars)

Optional:

• CLICKHOUSE_PORT - Default: 8123
• CLICKHOUSE_SECURE - Default: false
• CLICKHOUSE_VERIFY - Default: true
• NODE_ENV - Default: development
• DISABLE_SECURE_COOKIES - Default: false
• REDIS_URL - Redis connection URL for caching (e.g., redis://localhost:6379)

Caching Architecture

ClickLens supports optional Redis caching to improve performance for frequently accessed data.

Redis Integration

Purpose: Cache query results and monitoring metrics to reduce ClickHouse load and improve response times.

Cached Data Types:

• Table Explorer data (schema information, parts, merges, mutations)
• Monitoring metrics (system.metrics, system.asynchronous_metrics)
• Query analytics data
• Time-series chart data

Cache Strategy: Stale-while-revalidate pattern

• Serve cached data immediately
• Refresh cache in background
• Reduces perceived latency for users

Configuration:

• Redis is optional - if REDIS_URL is not set, caching is disabled
• Connection string format: redis://[password@]host:port[/db]
• Example: redis://localhost:6379 or redis://:password@redis.example.com:6379/0

Cache Key Patterns:

Cache Invalidation Strategies:

Benefits:

• Reduced ClickHouse query load
• Faster page loads for monitoring dashboards
• Better user experience with instant data display
• Lower resource consumption on ClickHouse server

ClickHouse Requirements

Minimum Version: 21.8+

Required Server Configuration (config.xml):

• HTTP interface enabled (port 8123 or 8443)
• Access management improvements enabled

Optional System Tables (enable in config.xml):

• system.text_log - Server logs viewer
• system.session_log - Session logs viewer
• system.metric_log - Time-series monitoring charts

Lens Service Account Setup:

• Create user with LENS_USER and LENS_PASSWORD
• Grant SELECT ON system.*
• Grant SHOW DATABASES, SHOW TABLES, SHOW COLUMNS
• Grant ACCESS MANAGEMENT (for reading grants)
